SWITCHRACK EXPLAINED
ADVANCE DRIVE PERFORMANCE & INCREASED DAMAND
Increased voltages improve efficiency, reduce loss
​
Use of wide bandgap semiconductors leads to higher energy density and reduced size and weight
​
Changes in battery chemistry supports faster charging
​
Transition to GaN and SiC supports increased voltages, faster switching speeds and higher power in IPM’s (Intelligent Power Modules)
​
​
TREND: Battery Chemistry Improvements Semi Improvements: SiC and GaN
-
Higher voltages
-
Improved battery power density
-
Higher switching speeds
​
CONSUMER BENEFITS:
-
Lighter weight vehicles
-
Increased cruising range
-
Increased eV demand/acceptance
​
SUPPLIER IMPACT:
-
Increased component (inverter) demand
-
New competitive entrants into eV market
-
Increased price competition
-
Increased pressure on mfg costs
The RPI-developed AirSwitch™ provides air cylinder-actuated high-current switch capability. It features extremely low contact resistance, and the self-annealing coating technology actually decreases contact resistance over time. Contacts are rated for a minimum 100,000 actuations. High current solutions rated at 600A are in production today, and 900-1400A solutions are available.
​
-
Low contact resistance
-
Self-annealing technology
-
Contact resistance decreases over time
-
High longevity – >100,000 cycles rated lifetime
-
High current capacity
-
600A solutions in production
-
900-1400A solutions available
-
High density connectivity
AIR SWITCH
TECHNOLOGY
A
B
C
D
E

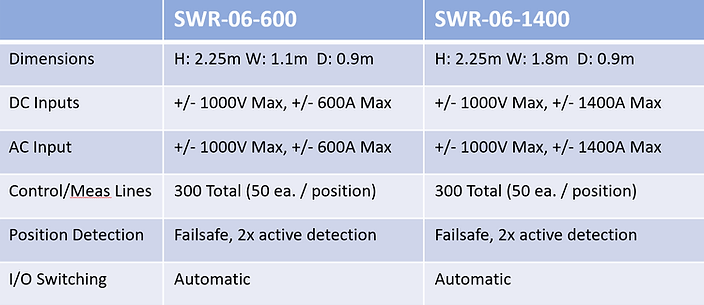

A. Physical Rack
-
SWR-06-600: 1.1m wide by .9m deep by 2.25m tall
-
SWR-06-1400: 1.8m wide by .9m deep by 2.25m tall
B. DC Output to DUT (Switched)
C. AC Outputs To DUT (Switched)
D. Control lines to DUTs
(300 total, Switched)
​
E .Rear DC Power Supply Input
(Not shown)
Traditional Inverter testing uses dedicated resources per DUT (high CapEx)
​
High throughput achieved through replication
DC POWER
TEST CONTROLLER
INVERTER
LOAD
DC POWER
TEST CONTROLLER
INVERTER
LOAD
RPI
SWITCHRACK
RPI SwitchRack reduces CapEx by sharing resources across multiple devices
​
High throughput is intrinsic in the shared resource design (6 position multiplexed testing)
